Getinge Lancer Ultima Undercounter Laboratory Washer

Vraag om prijs

Beschikbaar via nabestelling

ultima rack 48IXLC injectors long short mixed

Injector racks for narrow parts

The Injector rack (IX) allows effective washing of parts with narrow necks. An injector can be designed with spherical spreader for the washing of large containers. Height and diameter of the injector must be adapted to the part geometry to ensure an optimum cleaning result. The racks can be equipped with different sizes and numbers of injectors:

  • Needle injectors
  • Short injectors
  • Long injectors
  • Mixed injectors – Racks can include both long and short injectors
ultima rack pst basic

Basic racks for beakers

The basic racks (PST) allow washing of beakers which can be placed with opening down directly on the rack. This basket is only used on the lower level of the washer to benefit from the spraying of the lower chamber washing arm.

The basic basket and washing arm (PSBT) are designed the same way as the PST but fitted with a washing arm. It is designed for use in the upper level of the chamber.

ultima mixed rack PS-21IXLC-25PIP

Multipurpose racks for mixed loads

Improve utilization of the chamber volume with multipurpose racks. The racks feature different sections, such as the PIP/PS/IXLC to accommodate beakers, narrow neck glassware, and pipettes. These racks are ideal for maximizing throughput when washing mixed loads.

ultima basic rack different support example testtubes caps

Baskets and covers for small items

Small mesh baskets (LTC/STC) can be placed on standard racks for washing of smaller items such as bottle caps, ferrules, plugs, stoppers and test tubes. The baskets include top covers to keep the items in place within the basket

Injector rack covers are available in full, 1/2 and 1/3 sizes to secure small or lightweight labware during the wash cycle.

Ultima 815LX trolley with 5 racks

Safe, ergonomic transport and storage

Up to 5 racks can be stored on an accessory storage, providing a convenient place to store accessory racks and baskets when not in use. A 5-level transport trolley allows for safe and ergonomic transportation of racks, e.g. from workbench to washer.

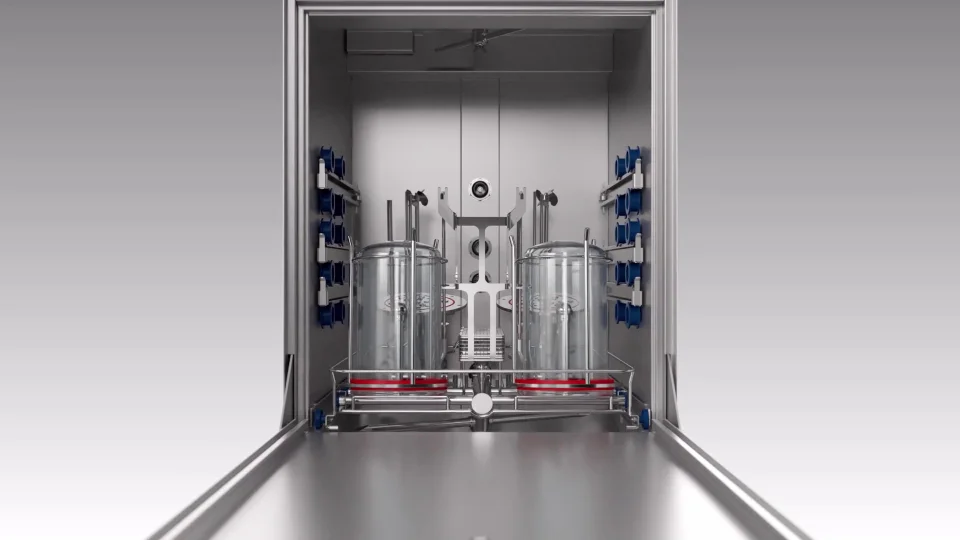

Getinge multi-use bioreactor wash rack

Specialty wash rack

This dedicated wash rack, for multi-use bioreactors volume 1-3 liters (0,26-0,79 gal), establishes a highly reproducible system.

  • The design features an injector system to clean ports on the bioreactor headplate.
  • Pre-validated cleaning performance ensures accurate and repeatable results.

Getinge Lancer Ultima Undercounter Laboratory Washers

Glassware washers designed for easy operations in laboratories with limited space and budget.

Maximize valuable research space with the Getinge Lancer Ultima Undercounter Laboratory Washer/Dryers. Two models are available for installation under casework for a virtually invisible footprint.

Optimize cleaning performance

waterflow illustration of lancer ultima

High performance in a compact footprint

The Laboratory Undercounter Washer/Dryers are designed for optimal cleaning performance in space-limited laboratories. The hydraulic systems deliver a direct fluid path to each individual rack, maximizing water flow and pressure.

Lancer labwasher screws close up

Ensure consistent pressure and flow

A tight connection to the hydraulic circuit ensures consistent water pressure and flow on each wash level. Injector rack connections are strategically located in the rear of the chamber. The door pushes the racks against the circuit to form a secure connection.

lancer labwashers 810lx

Complete water coverage for comprehensive cleaning

Get complete coverage of both the exterior and interior of your laboratory glassware. Pressurized top and bottom stainless steel spray arms combine with injector washing on two levels for a comprehensive clean.

detegent ultima washer

Minimize environmental impact

Maximize cleaning performance while minimizing costs and environmental impact. Peristaltic pumps deliver accurate dosing of detergent and acid. Optional conductivity measurement ensures consistent processing with no chemical residues on processed goods.

Process control & operation

Undercounter laboratory washer dryer 820 lx operator starting process

One-touch efficiency

Improve reprocessing efficiency with preset and custom cycles. Five preset programs cover the most common routine cleaning applications; these can easily be started with one touch on the icon-based user interface.

Cycle parameters can be adjusted and customized to deliver up to 35 custom cycles to meet specific process needs. Different password levels are required for custom programming.

Undercounter Laboratory Washer Dryer USB Stick

Documented performance

Documentation plays a critical role in laboratory quality control. With Lancer Ultima, a control system monitors several parameters throughout the cycle. The interface will display an alarm, stopping processes if parameters go outside the pre-set limits.

A digital pdf printout provides cleaning process documentation including cycle parameters, cycle number, date and time, phase duration, temperature for each phase, and detergent/acid intake.

lancer labwasher control screen

Efficient operations

User-friendly interfaces ensure easy and efficient performance. Screen menus and graphic user interfaces simplify setup and operations, making it easy to identify active programs, remaining time, warnings, alarms and cycle complete notifications.

The interface also includes functions to simplify calibration and other qualification tasks.

Loading efficiency & construction

lancer labwashers 815lx

Ergonomic and efficient loading

The Undercounter Laboratory Washer/Dryers make the best use of your valuable laboratory space. Efficient use of chamber space maximizes throughput with a minimal footprint and operating cost. The range allows washing on multiple levels, each connected to the hydraulic circuit. Telescopic runners support high-density loading. When combined with a drop-down door, these features allow for ergonomically friendly loading without removing racks from the chamber.

The most common racks are interchangeable between the upper and lower level, allowing the chamber to be flexibly configured according to the items being processed. All racks are interchangeable among the 810 LX and 815 LX models of Getinge Lancer Ultima Undercounter Washers, and the 910 LX, and 1300 LX models of the Freestanding Washers, limiting the need for new loading equipment when expanding the capacity of your laboratory.

Undercounter Laboratory Washer Interior Floor Sprayer

High-quality construction for a long-term investment

The Undercounter Laboratory Washer/Dryers have high-quality construction to maximize uptime and improve laboratory efficiency. The sump, interior chamber, door, and spray arms are constructed of high-grade stainless steel which resists aggressive laboratory chemicals and residues.

Within the chamber, a dual-filter system protects the main pump from debris that could cause damage and costly downtime. The exterior is fully enclosed in stainless steel to resist corrosion, simplify cleaning, and protect plumbing and electrical components. An insulated chamber and door confines heat loss and provides retention of heat to minimize energy consumption. The sump design and direct fluid path reduce the water volume needed per fill, minimizing the overall consumption of water and chemicals.

Bioreactor preparation solution

Wistia video thumbnail

Advances in bioreactor washing

The programmable labware washer with specialty wash rack for the multi-use bioreactor assures thorough cleaning, better reproducibility and reduced labor.

Bioreactor preparation solution

Preparation of multi-use bioreactor

Proper preparation of a multi-use bioreactor will increase productivity, and reproducibility and avoid process interruptions. This requires a thorough cleaning of the vessel and all associated components.

Exterior Dimensions (WxHxD) 600x850x739 mm (23,6”x33,5”x29,1”)
Exterior Dimensions (wxHxD) with side chemical cabinet, sold as accessory 900x850x739 mm (35,4”x33,5”x29,1”)
Chamber Dimensions (WxHxD) 535 x 498 x 520 mm (21,1” x 19,6” x 20,5”)
Chamber Volume 140 L (4,9 cu.ft.)
Weight 85 kg (187 lbs.)
Weight with side chemical cabinet 100 kg (220 lbs.)
Sound Level ≤ 60 dB(A)
Washing Levels 2
Human Interface Color touch screen 3,5”
Controller PROLUX – 40 Programs
Drying No

getinge_lancer_ultima_undercounter_series_brochure_-_global-en-non_us_canada

Beschrijving

Getinge Lancer Ultima Undercounter Laboratory Washers

Glassware washers designed for easy operations in laboratories with limited space and budget.

Maximize valuable research space with the Getinge Lancer Ultima Undercounter Laboratory Washer/Dryers. Two models are available for installation under casework for a virtually invisible footprint.
