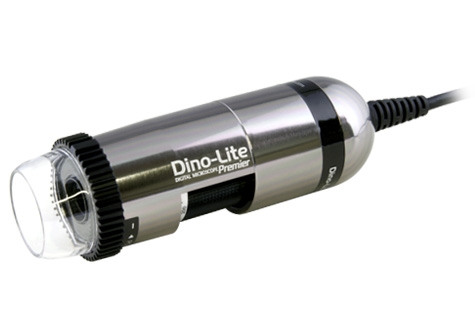

Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x & 200x, polarizer, aluminium, AM4013MZT

Name: Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x &amp; 200x, polarizer, aluminium, AM4013MZT
SKU: AM4013MZT
Availability: BackOrder

€ 589,00 Exclusief BTW

Toevoegen aan verlanglijst

Artikelnummer: AM4013MZT Categorie: 1.3 MP (Dino-Lite Premier) Tags: AM4013MZT, Digital microscope, digitale microscoop, Dino-lite, dino-lite edge 1.3, microscoop, microscope, QC, QC laboratorium

AM4013MZT
Featuring enhanced 1.3 Megapixels sensor with optics specialized in low magnification.

Enhanced 1.3 Megapixels

It observes with accurate color reproductions and retain details under low lighting with the optimum resolution for detailed live preview and captured images.

Up to 200x magnification

Have the freedom to magnify from 20x to 50x the closer the Dino-Lite is to the target, using the Dino-Lite knob to focus for each magnification. Achieve an additional 200x when the Dino-Lite is at close range.

USB 2.0 Interface

Digitize the microscopy experience; allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Professional measurement tools

Use professional measurement tools that are calibratable for assured accuracy and convienently document or share information with the bundled software.

Adjustable polarization

Useful for suppressing glare from reflective materials, such as metals, plastics, or glass, and applicable in dermatology for observing the sub dermal layer of skin.

Robust housing

Tough aluminum alloy housing that is treated to diffuse static, rust resistant, scratch resistant, and ROHS compliant.

Information about working distance and field of view

M	WD	FOV (x)	FOV (y)
20	48.7	19.6	15.6
30	21.7	13.0	10.4
40	9.0	9.8	7.8
50	1.9	7.8	6.3
60	-2.3	6.5	5.2
220	-0.1	1.8	1.4
230	1.0	1.7	1.4
240	2.1	1.6	1.3

M = magnification rate WD = working distance FOV = field of view DOF= depth of field Unit = mm

Model	AM4013MZT Dino-Lite Premier
Interface	USB 2.0
Product Resolution	1.3M pixels (SXGA)
Magnification Rate	20x~50x, 200x
Sensor	Color CMOS
Frame Rate	Up to 30fps
Save Formats	Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Movie: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Microtouch	Touch sensitive trigger on the microscope for taking pictures
Lighting	8 white LED lights switched on/off by software
Polarizer	Yes
Measurement Function	Yes
Calibration Function	Yes
Operating System Supported	Windows XP/7/8/10/11 macOS 10.14 or later
Unit Weight	140g
Unit Dimension	10.5cm (H) x 3.2cm (D)
Package Dimensions	21.5cm(L) x 18cm(W) x 7cm(H)

Beschrijving

AM4013MZT
Featuring enhanced 1.3 Megapixels sensor with optics specialized in low magnification.

Extra informatie

Gewicht	3 kg

Beoordelingen

Er zijn nog geen beoordelingen.

Wees de eerste om “Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x & 200x, polarizer, aluminium, AM4013MZT” te beoordelen

Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x & 200x, polarizer, aluminium, AM4013MZT

AM4013MZT

Featuring enhanced 1.3 Megapixels sensor with optics specialized in low magnification.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/6693b05b3d827967ca3994dc950f74f8.jpg" data-eio="l" />

Enhanced 1.3 Megapixels

It observes with accurate color reproductions and retain details under low lighting with the optimum resolution for detailed live preview and captured images.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/6fb86303709361291107db3276711c61.jpg" data-eio="l" />

Up to 200x magnification

Have the freedom to magnify from 20x to 50x the closer the Dino-Lite is to the target, using the Dino-Lite knob to focus for each magnification. Achieve an additional 200x when the Dino-Lite is at close range.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/27074638dbcf4ed81d554bf766b28c73.jpg" data-eio="l" />

USB 2.0 Interface

Digitize the microscopy experience; allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/fd5ec0dc9f51bcefe1e65cc02dc08b30.jpg" data-eio="l" />

Professional measurement tools

Use professional measurement tools that are calibratable for assured accuracy and convienently document or share information with the bundled software.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/c05192ced1d31191bcfc4fc537c11013.jpg" data-eio="l" />

Adjustable polarization

Useful for suppressing glare from reflective materials, such as metals, plastics, or glass, and applicable in dermatology for observing the sub dermal layer of skin.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/e5fc6d34dc7cb74b029ba4b365a4014f.jpg" data-eio="l" />

Robust housing

Tough aluminum alloy housing that is treated to diffuse static, rust resistant, scratch resistant, and ROHS compliant.

Information about working distance and field of view

M

WD

FOV (x)

FOV (y)

20

48.7

19.6

15.6

30

21.7

13.0

10.4

40

9.0

9.8

7.8

50

1.9

7.8

6.3

60

-2.3

6.5

5.2

220

-0.1

1.8

1.4

230

1.0

1.7

1.4

240

2.1

1.6

1.3

M = magnification rate WD = working distance FOV = field of view DOF= depth of field Unit = mm

Model

AM4013MZT Dino-Lite Premier

Interface

USB 2.0

Product Resolution

1.3M pixels (SXGA)

Magnification Rate

20x~50x, 200x

Sensor

Color CMOS

Frame Rate

Up to 30fps

Save Formats

Image:

DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

DinoXcope: PNG, JPEG

Movie:

DinoCapture2.0: WMV, FLV, SWF

DinoXcope: MOV

Microtouch

Touch sensitive trigger on the microscope for taking pictures
