Labdeal > Producten > Dino-Lite 5 MP (Dino-Lite Edge) AM7515MT4A, 5 MP, 400~470x, aluminium, Automatic Magnification Reading, coaxial illumination

Dino-Lite 5 MP (Dino-Lite Edge) AM7515MT4A, 5 MP, 400~470x, aluminium, Automatic Magnification Reading, coaxial illumination

€ 1.079,00 Exclusief BTW

1 op voorraad

Toevoegen aan verlanglijst
Artikelnummer: AM7515MT4A Categorieën: , , Tags: , , , , , , , , , ,

AM7515MT4A

Remarkably compacted with a built-in coaxial light, the 5MP Edge AM7515MT4A delivers exceptional brightfield image at 415~470x magnifications. Through the use of Flexible LEDs Control (FLC), the AM7515MT4A is capable of switching between or mixing brightfield and darkfield for more details. Taking the advantages of Automatic Magnification Readings (AMR), the AM7515MT4A may optimize the measurement with efficiency and accuracy for catering the needs of most measuring tasks.

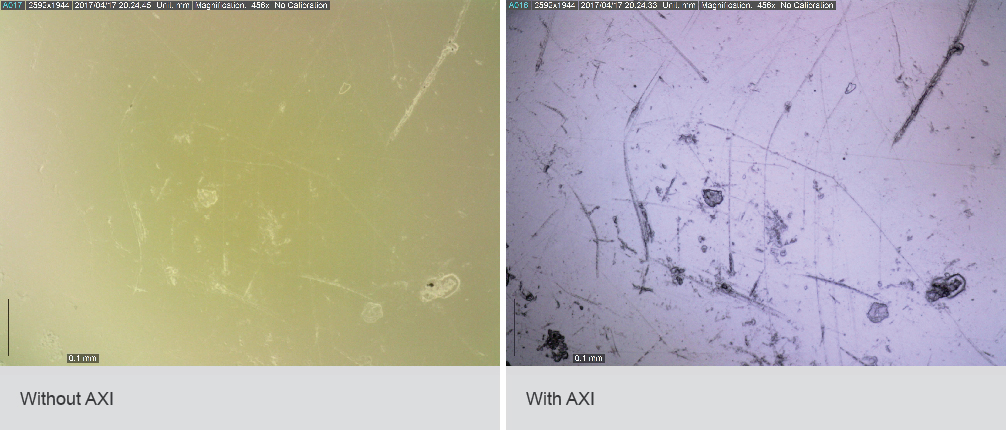

Brightfield/Darkfield

Without the need of other accessories, the brightfield and darkfield illumination can be provided separately or coordinated with each other to explore for more details.

High optical resolution with up to 400X magnifications

With superior optics, this Edge model is capable of revealing some of the finest details within a range of 415-470X magnifications.

5.0 Megapixels

Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592×1944.

Automatic Magnification Reading (AMR)

Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.

Flexible LED Control (FLC)

Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.

Scroll Lock

The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

Robust housing

The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.

Interchangeable front caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from contamination of dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)
This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-O / Open Cap (9.5mm length)
This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.


Note:
The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.

Information about working distance and field of view

M

WD

FOV (x)

FOV (y)

DOF

415

6.0

0.951

0.697

420

7.3

0.926

0.680

430

8.0

0.905

0.664

440

8.8

0.884

0.648

450

10.0

0.867

0.636

460

11.3

0.847

0.621

470

11.8

0.828

0.608

0.04


M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Model

AM7515MT4A Dino-Lite Edge

Interface

USB 2.0

Product Resolution

5M pixels (2592×1944)

Magnification

415x~470x

Frame Rate

10fps in 5MP/3MP/2MP, MJPEG

25fps in 1.3MP, MJPEG

30fps in VGA, MJPEG

Saving Format

Image:

DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

DinoXcope: PNG, JPEG

Video:

DinoCapture2.0: WMV, FLV, SWF

DinoXcope: MOV

Lighting

8 white LEDs

Microtouch

Yes

Operating System Supported

Windows XP/7/8/10/11

macOS 10.14 or later

System Requirements

‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)

‧ 20GB available HD space

‧ 2GB available RAM or more

‧ 512MB video card or more

‧ CD-ROM drive for installation

‧ USB 2.0

Calibration Function

Yes

Measurement Function

Yes

Unit Dimension

10.7cm (H) x 3.2cm (D)

Unit Weight

139g

Beschrijving

AM7515MT4A

Remarkably compacted with a built-in coaxial light, the 5MP Edge AM7515MT4A delivers exceptional brightfield image at 415~470x magnifications. Through the use of Flexible LEDs Control (FLC), the AM7515MT4A is capable of switching between or mixing brightfield and darkfield for more details. Taking the advantages of Automatic Magnification Readings (AMR), the AM7515MT4A may optimize the measurement with efficiency and accuracy for catering the needs of most measuring tasks.

Extra informatie

Gewicht 2 kg
