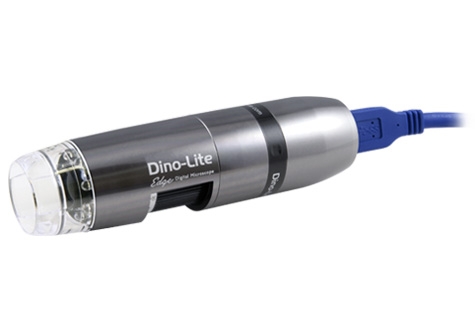

Observe smooth and high optical resolution live imaging with Dino-Lite 5MP AM73515MZT USB 3.0, a digital microscope specially designed for high-speed data transmission providing up to 15 FPS at 5MP resolution. AM73515MZT AMR feature is a tool of choice for measurement applications.
High-Speed transmission
Through the use of USB 3.0 interface, the device is capable to obtain smooth and high-quality image at up to 15 FPS at 2560×1920 or 45 FPS at 1280×960.
High optical resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
5.0 Megapixels
The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2560×1920 without compression.
Automatic Magnification Reading (AMR)
Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.
Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.
​Robust metallic housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interferences.
Adjustable polarizer
The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
Interchangeable caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.
Interchangeable front caps
The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUSÂ series models. The caps provide additional versatility to Dino-Lite digital microscope applications.
N3C-CÂ / Close Cap
This cap protects the lens and LED lights from contamination of dust, debris, or moisture.
N3C-DÂ / Diffuser Cap
This is a translucent cap that partially softens the LED light.
N3C-D2Â / Opal Diffuser Cap
This cap softens and evenly distributes the LED light.
N3C-EÂ / Extended Open Cap (12.5mm length)
This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
N3C-LÂ / Long Cap (30mm length)
This cap assists users to find focus quickly at low magnification when it touches surface.
N3C-OÂ / Open Cap (9.5mm length)
This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
N3C-SÂ / Sidelight Cap
Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.
Note:
The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.
Information about working distance and field of view
M
WD
FOV (x)
FOV (y)
DOF
10
142.4
37.8
28.3
19.7
20
59.5
19.5
14.6
5.4
30
32.9
13.0
9.7
2.6
40
20.2
9.8
7.3
1.6
50
13.2
7.8
5.8
1.1
60
9.0
6.5
4.8
0.8
70
6.4
5.6
4.2
0.6
80
4.8
4.9
3.6
0.5
90
3.9
4.3
3.2
0.42
100
3.5
3.9
2.9
0.36
110
3.3
3.6
2.7
0.31
120
3.5
3.3
2.4
0.27
130
3.8
3.0
2.2
0.24
140
4.3
2.8
2.1
0.22
150
4.9
2.6
1.9
0.2
160
5.6
2.4
1.8
0.18
170
6.4
2.3
1.7
0.17
180
7.3
2.2
1.6
0.15
190
8.2
2.1
1.5
0.14
200
9.2
2.0
1.5
0.13
210
10.2
1.9
1.4
0.13
220
11.3
1.8
1.3
0.12
M = magnification rate     WD = working distance (without front cap)     FOV = field of view     DOF= depth of field     Unit = mm
Observe smooth and high optical resolution live imaging with Dino-Lite 5MP AM73515MZT USB 3.0, a digital microscope specially designed for high-speed data transmission providing up to 15 FPS at 5MP resolution. AM73515MZT AMR feature is a tool of choice for measurement applications.
