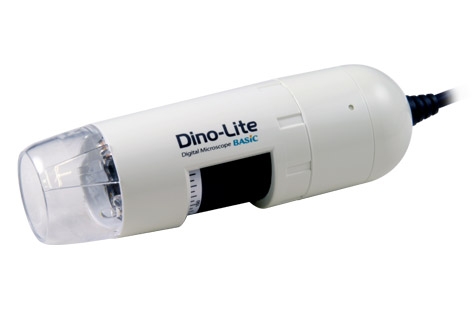

Dino-Lite VGA (Dino-Lite Basic), AM2111, 640x480, 10-70x & 200x, 4 LEDs
Labdeal > Producten > Dino-Lite VGA (Dino-Lite Basic), AM2111, 640×480, 10-70x & 200x, 4 LEDs

Dino-Lite VGA (Dino-Lite Basic), AM2111, 640×480, 10-70x & 200x, 4 LEDs

€ 129,00 Exclusief BTW

12 op voorraad

Toevoegen aan verlanglijst
Artikelnummer: AM2111 Categorie: Tags: , , , , , , , , , ,

AM2111

The Dino-Lite Basic AM2111 is an easy to use digital microscope that will stimulate interest and excitement for education and microscopy enthusiasts with magnification from 20x up to 200x depending of working distance. It allows the user to conveniently share observations under the microscope and also record them directly on a computer using friendly software for Windows or Macintosh operating systems. The AM2111 is an update to the AM2011 with increased durability and improved focus dial movement.

Large range of magnification

Be able to use the Dino-Lite for an abundant of applications with its large range of magnification from 20x ~ 50x plus 200x without changing a single lens. The capability is achieved by scrolling the dial on the Dino-Lite to focus in relation to the working distance. Use low magnification at a distance and higher magnification (50x) when almost touching the specimen. At the same distance for 50x, keep on scrolling the dial to the right and obtain the highest magnification of 200x.

Stimulate interest and excitement with a digital microscope

Simply connect to a computer with USB 2.0 and sharing what you are observing under the microscope cannot be easier, as it can be shared either directly on a monitor or delivered through digital media. Also with the Dino-Lite’s ease-of-use design, it’s very approachable by beginners of microscopy.

Information about working distance and field of view

M

WD

FOV (x)

FOV (y)

DOF

20

51.7

21

15.7

8.02

30

24.1

14

10.5

40

11

10.5

7.9

50

3.8

8.4

6.3

1.95

60

-0.6

7

5.2

200

-0.4

2.1

1.6

1.46

210

0.6

2

1.5

220

1.7

1.9

1.4

230

2.8

1.8

1.4


M = magnification rate      WD = working distance      FOV = field of view      DOF= depth of field      Unit = mm

Model

AM2111 Dino-Lite Basic

Interface

USB 2.0

Product Resolution

640×480 pixels (VGA)

Magnification Rate

20x~50x, 200x

Sensor

Color CMOS

Frame Rate

Up to 30fps

Save Formats

Image:

DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

DinoXcope: PNG, JPEG

Movie:

DinoCapture2.0: WMV, FLV, SWF

DinoXcope: MOV

Lighting

4 white LED lights for illumination

Operating System Supported

Windows XP/7/8/10/11

macOS 10.14 or later

Unit Weight

100g

Unit Dimension

10.5cm (H) x 3.2cm (D)

Beschrijving

AM2111

The Dino-Lite Basic AM2111 is an easy to use digital microscope that will stimulate interest and excitement for education and microscopy enthusiasts with magnification from 20x up to 200x depending of working distance. It allows the user to conveniently share observations under the microscope and also record them directly on a computer using friendly software for Windows or Macintosh operating systems. The AM2111 is an update to the AM2011 with increased durability and improved focus dial movement.

Extra informatie

Gewicht 2 kg
