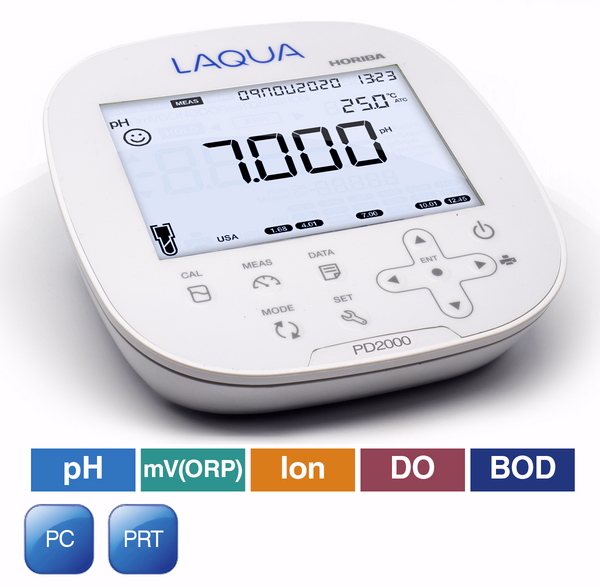

Horiba® LAQUA PD2000, Benchtop pH/ORP/Ion/DO/BOD/Temperature Meter, 3200930551
€ 980,00 Exclusief BTW
Beschikbaar via nabestelling
- Product omschrijving
- Features
- Technical specifications
- Downloads
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Compact and Powerful
-
-2.000 to 20.000 pH range
-
0.1, 0.01, & 0.001 pH resolutions
-
USA, NIST, NIST2, DIN, and Custom pH buffer groups
-
Up to 6 pH calibration points
-
Offset, segment and average slopes data after pH calibration
-
Adjustable calibration alarm up to 90 days
-
-2000.0 to +2000.0 mV range with ORP calibration option
-
0.000 μg/L to 9999 g/L ion range with 3 selectable units
-
Up to 5 user-defined ion calibration points
-
Segment and average slopes data after ion calibration
-
Measures dissolved oxygen (DO) and biochemical oxygen demand (BOD)
-
Up to 60.00 mg/L / 600.0% DO range
-
Compensates salinity, atmospheric pressure, and temperature effects in DO
-
Pre-programmed 5-day BOD method with seed correction option
-
Up to 2 DO calibration points
-
Compatible with galvanic DO electrodes
-
-30.0 to 130.0°C / -22.0 to 266.0°F temperature range with calibration option
-
Auto stable, auto hold, and real time measurement modes
-
Electrode status, temperature, and reading stability indicators viewable at a glance
-
Large memory accepting up to 2000 data sets with date/time stamp
-
Auto data log function with adjustable time interval
-
Real time clock facilitating time-dependent functions
-
Adjustable auto shut-off time up to 30 mins.
-
Password protected set-up mode for security
-
Software upgrade capability
-
PC communication via USB cable and complimentary DAS20 data acquisition software
-
Printer communication via RS232 cable
-
5” Digital, custom LCD display with backlight
-
Sleek design with easy-to-use interface and audible key sound feedback
-
Small meter footprint with adjustable, integrated electrode stand
-
3 Years warranty
Model |
LAQUA-PD2000pH/ORP/Ion/DO/BOD/Temperature (°C/°F) |
|---|---|
pH Range |
-2.000 to 20.000 pH |
Resolution |
0.1 / 0.01 / 0.001 pH |
Accuracy |
± 0.003 pH |
pH Buffer Groups |
USA, NIST, NIST2, DIN, Custom |
Calibration Points |
Up to 5 (USA, NIST, NIST2) / Up to 6 (DIN, Custom) |
ORP Range |
± 2000.0 mV |
Resolution |
0.1 mV |
Accuracy |
± 0.2 mV |
Calibration Option |
Yes (Up to ± 200 mV) |
Ion Range |
0.000 µg/L to 9999 g/L |
Units |
µg/L ↔ mg/L ↔ g/L, ppm ↔ ppt, mmol/L ↔ mol/L |
Resolution |
4 Significant digits |
Accuracy |
± 0.3% full scale or ± 0.2 mV, whichever is higher |
Calibration Points |
Up to 5 |
DO Range |
0.0 to 60.00 mg/L, 0.0 to 600.0% |
Resolution |
0.01 mg/L, 0.1% |
Accuracy |
+/- 0.1 mg/L , +/- 1.0% |
Salinity Compensation |
0.0 to 40.0 ppt |
Barometric Pressure Compensation |
10.0 to 200.0 kPa |
BOD Measurement |
5-day BOD with seed correction option |
DO Probe Type |
Galvanic integrated with temperature sensor |
Calibration Points |
Up to 2 |
Temperature Range |
-30.0 to 130.0 °C / -22.0 to 266.0 °F |
Resolution |
0.1 °C / °F |
Accuracy |
± 0.5 °C / ± 0.9 °F |
Calibration Option |
Yes (± 10.0 °C / ± 18.0 °F range in 0.1 °C increments) |
Memory |
2000 |
Auto Data Log |
Yes |
Real-time Clock |
Yes |
Date & Time Stamp |
Yes |
Measurement Modes |
Auto Stable / Auto Hold / Real Time |
Offset & Slope Display |
Yes (Segment & Average Slopes) |
Calibration Alarm |
Yes (Programmable: up to 90 days) |
Auto Shut-Off |
Yes (Programmable: up to 30 mins.) |
Electrode Status |
On screen display |
Diagnostics |
Yes |
Password Setting |
Yes |
Software Upgrade |
Yes |
PC / Printer Communication |
Phono jack (USB / RS232C) |
Meter Inputs |
2 x BNC, 2 x phono (ATC), DC sockets |
Display |
5″ Custom LCD with 320 segments and backlight |
Power Requirement |
AC adaptor 100 – 240V, 50 – 60Hz |
Dimensions & Weight |
155(L) x 150(W) x 67(H) mm, 770g |
Beschrijving
Benchtop pH/ORP/Ion/DO/BOD/Temperature Meter
Compact and Powerful
Water quality analysis is repeatedly performed in laboratories on a daily basis. Our compact and powerful benchtop model was developed to provide simplicity with excellent on-site usability.
