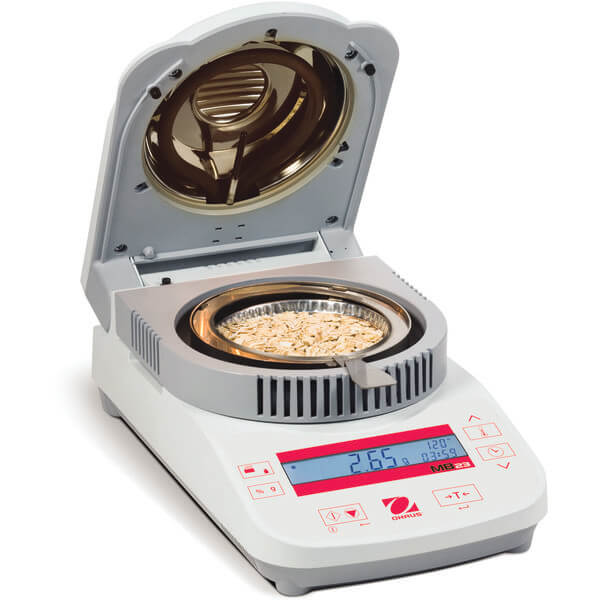

Ohaus® Moisture Analyzers, MB23, Max. Capacity 110gr, Readability Moisture Content 10mg/0,1%, Pan Size 90mm, 80252470
€ 1.365,00 Exclusief BTW
- Accessoires
- Product omschrijving
- Technical specifications
- Video's
- Beschrijving
- Extra informatie
- Beoordelingen (0)
OVERVIEW
The MB23 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and an non-glass infrared heating element, the MB23 offers moisture analysis for any budget.
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
nts)
SPECIFICATIONS
| Maximum Capacity | 110 g |
| Readability Moisture Content | 10 mg/0.1% |
| Pan Size | 3.5 in (90 mm) |
| Heater Type | Infrared Coil |
| Communication | RS232 (Included) |
| Dimensions | 11 in x 5 in x 6.5 in (280 mm x 127 mm x 165 mm) (LxHxW) |
| Display | Backlit LCD |
| In-Use Cover | Included |
| Net Weight | 5 lb (2.3 kg) |
| Power | AC Power (Included) |
| Repeatability, typical | 0.002 g |
| Shut-Off Criteria | Timed; Manual; Automatic – Preset Weight Loss/Time |
| Temperature Range | 50 °C ; 160 °C |
| Units of Measurement | Gram |
| Working Environment | 50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing) |
DOCUMENTS
Beschrijving
OVERVIEW
The MB23 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and an non-glass infrared heating element, the MB23 offers moisture analysis for any budget.
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
Extra informatie
| Gewicht | 8 kg |
|---|---|
| Afmetingen | 36 × 18 × 21 cm |
