Dino-Lite 1.3 MP (Dino-Lite Edge), AM4115T-GRFBY, 1.3MP, 20~220x,ex: 480nm em: 510nm, ex: 575nm em: 610nm
Labdeal > Producten > Dino-Lite 1.3 MP (Dino-Lite Edge), AM4115T-GRFBY, 1.3MP, 20~220x,ex: 480nm em: 510nm, ex: 575nm em: 610nm

Dino-Lite 1.3 MP (Dino-Lite Edge), AM4115T-GRFBY, 1.3MP, 20~220x,ex: 480nm em: 510nm, ex: 575nm em: 610nm

€ 829,00 Exclusief BTW

Toevoegen aan verlanglijst
Artikelnummer: AM4115T-GRFBY Categorieën: , Tags: , , , ,

AM4115T-GRFBY

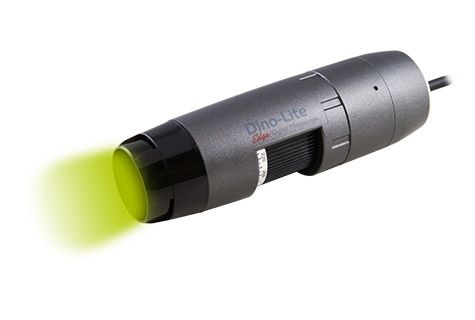

Use 465 nm light to view green fluorescence or switch to 580 nm excitation lights to view red fluorescence signals with AM4115T-GRFBY digital microscope.

Green and Red fluorescence

The switchable 465 and 580 nm excitation lights coupled with a 505-540 and 610-720 nm dual-band emission filter make this microscope suitable for viewing targets labeled with fluorescent probes such as GFP and mCherry.

1.3 Megapixels

Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 1280×1024.

Scroll Lock

The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

Interchangeable caps

The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from contamination of dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)
This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-LB / Long Cap
This black cap blocks ambient light for clearer observations of fluorescence emissions at low magnification.

N3C-OB / Open Cap
This black cap blocks ambient light for clearer observations of fluorescence emissions.


Note:
The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.

Information about working distance and field of view

M

WD

FOV (x)

FOV (y)

DOF

20

60.2

19.5

15.6

2.5

30

33.5

13

10.4

1.8

40

20.9

9.8

7.8

1.5

50

13.9

7.8

6.3

60

9.7

6.5

5.2

70

7.1

5.6

4.5

1.0

80

5.5

4.9

3.9

90

4.5

4.3

3.5

100

4.1

3.9

3.1

110

4

3.6

2.8

120

4.1

3.3

2.6

130

4.5

3

2.4

140

5

2.8

2.2

150

5.6

2.6

2.1

160

6.3

2.4

2

170

7.1

2.3

1.8

180

8

2.2

1.7

190

8.9

2.1

1.6

200

9.9

2

1.6

210

10.9

1.9

1.5

220

11.9

1.8

1.4

0.1


M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Model

AM4115T-GRFBY Dino-Lite Edge

Interface

USB 2.0

Product Resolution

1.3M pixels (SXGA)

Magnification Rate

20x~220x

Sensor

Color CMOS

Frame Rate

Up to 30fps

Save Formats

Image:

DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

DinoXcope: PNG, JPEG

Movie:

DinoCapture2.0: WMV, FLV, SWF

DinoXcope: MOV

Microtouch

Touch sensitive trigger on the microscope for taking pictures

Lighting

4 blue LEDs and 4 yellow LEDs

Measurement Function

Yes

Calibration Function

Yes

Operating System Supported

Windows XP/7/8/10/11

macOS 10.14 or later

Unit Weight

100g

Unit Dimension

10.5cm (H) x 3.2cm (D)

Package Dimensions

16cm (L) x 16cm (W) x 6cm (H)

Beschrijving

AM4115T-GRFBY

Use 465 nm light to view green fluorescence or switch to 580 nm excitation lights to view red fluorescence signals with AM4115T-GRFBY digital microscope.
