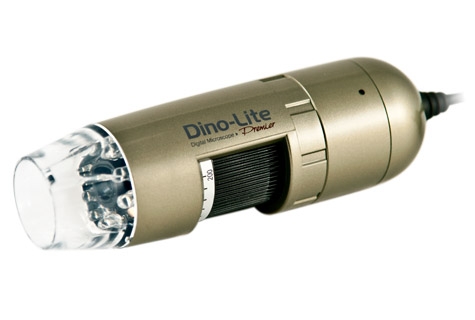

Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x & 200x, switchable UV 395nm+white, LWD, AM4113T-FVW

Name: Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x &amp; 200x, switchable UV 395nm+white, LWD, AM4113T-FVW
SKU: AM4113T-FVW
Availability: BackOrder

€ 499,00 Exclusief BTW

Toevoegen aan verlanglijst

Artikelnummer: AM4113T-FVW Categorie: 1.3 MP (Dino-Lite Premier) Tags: AM4113T, AM4113T-FVW, AM4113TL, Digital microscope, digitale microscoop, Dino-lite, dino-lite edge 1.3, microscoop, microscope, QC, QC laboratorium

AM4113T-FVW
Featuring 395nm UV and white lights switchable by software with enhanced 1.3 Megapixels sensor.

Enhanced 1.3 Megapixels

It observes with accurate color reproductions and retain details under low lighting with the optimum resolution for detailed live preview and captured images.

Up to 200x magnification

Have the freedom to magnify from 20x to 50x the closer the Dino-Lite is to the target, using the Dino-Lite knob to focus for each magnification. Achieve an additional 200x when the Dino-Lite is at close range.

USB 2.0 Interface

Digitize the microscopy experience; allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Professional measurement tools

Use professional measurement tools that are calibratable for assured accuracy and convienently document or share information with the bundled software.

395nm UV illumination

395nm Near UV lighting to illuminate specimens.

Dual light source

This software controlled feature allows switching between two sets of lighting for examination.

Scroll Lock

Assure the knobs position with the scroll lock.

Information about working distance and field of view

M	WD	FOV (x)	FOV (y)
20	48.7	19.6	15.6
30	21.7	13.0	10.4
40	9.0	9.8	7.8
50	1.9	7.8	6.3
60	-2.3	6.5	5.2
220	-0.1	1.8	1.4
230	1.0	1.7	1.4
240	2.1	1.6	1.3

M = magnification rate WD = working distance FOV = field of view DOF= depth of field Unit = mm

Model	AM4113T-FVW Dino-Lite Premier
Interface	USB 2.0
Product Resolution	1.3M pixels (SXGA)
Magnification Rate	20x~50x, 200x
Sensor	Color CMOS
Frame Rate	Up to 30fps
Save Formats	Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Movie: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Microtouch	Touch sensitive trigger on the microscope for taking pictures
Lighting	4white and 4 UV(395nm) LED lights switched by software
Measurement Function	Yes
Calibration Function	Yes
Operating System Supported	Windows 10, 8, 7, Vista, XP MAC OS 10.4 or later
Unit Weight	105g
Unit Dimension	10.5 cm (H) x 3.2 cm (D)
Package Dimensions	16 cm (L) x 16 cm (W) x 6 cm (H)

Beschrijving

AM4113T-FVW
Featuring 395nm UV and white lights switchable by software with enhanced 1.3 Megapixels sensor.

Extra informatie

Gewicht	3 kg

Beoordelingen

Er zijn nog geen beoordelingen.

Wees de eerste om “Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x & 200x, switchable UV 395nm+white, LWD, AM4113T-FVW” te beoordelen

Dino-Lite 1.3 MP (Dino-Lite Premier), 1.3MP, 20-70x & 200x, switchable UV 395nm+white, LWD, AM4113T-FVW

AM4113T-FVW

Featuring 395nm UV and white lights switchable by software with enhanced 1.3 Megapixels sensor.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/d618cfa5de2583db07a8ddf118020e16.jpg" data-eio="l" />

Enhanced 1.3 Megapixels

It observes with accurate color reproductions and retain details under low lighting with the optimum resolution for detailed live preview and captured images.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/4d815f95a1a05c21e598009f67ed7e94.jpg" data-eio="l" />

Up to 200x magnification

Have the freedom to magnify from 20x to 50x the closer the Dino-Lite is to the target, using the Dino-Lite knob to focus for each magnification. Achieve an additional 200x when the Dino-Lite is at close range.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/6b16c2a58a138fd135314d09e85cbeef.jpg" data-eio="l" />

USB 2.0 Interface

Digitize the microscopy experience; allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/5d00b61c81a5524f01996426c8c27f55.jpg" data-eio="l" />

Professional measurement tools

Use professional measurement tools that are calibratable for assured accuracy and convienently document or share information with the bundled software.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/151d5e98c2ef587cd1d3badc8da19b98.jpg" data-eio="l" />

395nm UV illumination

395nm Near UV lighting to illuminate specimens.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/19c0f8cfedb93449f23b77e77736bdf7.jpg" data-eio="l" />

Dual light source

This software controlled feature allows switching between two sets of lighting for examination.

<img decoding="async" src="https://www.dino-lite.com/upload/overview_pic_s/ccbf70fe0bdad5b074b150deea89e6b4.jpg" data-eio="l" />

Scroll Lock

Assure the knobs position with the scroll lock.

Information about working distance and field of view

M

WD

FOV (x)

FOV (y)

20

48.7

19.6

15.6

30

21.7

13.0

10.4

40

9.0

9.8

7.8

50

1.9

7.8

6.3

60

-2.3

6.5

5.2

220

-0.1

1.8

1.4

230

1.0

1.7

1.4

240

2.1

1.6

1.3

M = magnification rate WD = working distance FOV = field of view DOF= depth of field Unit = mm <img decoding="async" src="https://www.dino-lite.com/upload/overview_list_b/a8b442fbbabef5976b75ffd6edd72a2b.jpg" border="0" data-eio="l" />

Model

AM4113T-FVW Dino-Lite Premier

Interface

USB 2.0

Product Resolution

1.3M pixels (SXGA)

Magnification Rate

20x~50x, 200x

Sensor

Color CMOS

Frame Rate

Up to 30fps

Save Formats

Image:

DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

DinoXcope: PNG, JPEG

Movie:

DinoCapture2.0: WMV, FLV, SWF

M = magnification rate WD = working distance FOV = field of view DOF= depth of field Unit = mm
