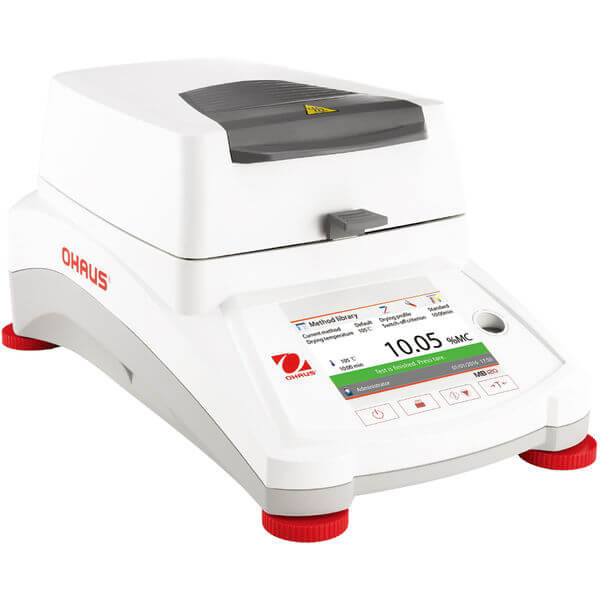

Ohaus® Moisture Analyzers, MB120, Max. Capacity 120gr, Readability Moisture Content 1mg/0,01%, Pan Size 90mm, 30241169
€ 4.890,00 Exclusief BTW
- Accessoires
- Product omschrijving
- Technical specifications
- Video's
- Beschrijving
- Extra informatie
- Beoordelingen (0)
OVERVIEW
Moisture affects everything we use on a daily basis. Therefore, in many cases it is important to be able to accurately determine the moisture content of samples. Equipped to handle routine and sophisticated measurements, our flagship moisture analyzer MB120 makes the whole process faster, easier, and more efficient. The MB120 allows you to analyze more samples, access saved data, and spend less time prepping and more time putting your results to work.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3″ TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 14 operational languages
SPECIFICATIONS
| Maximum Capacity | 120 g |
| Readability Moisture Content | 1 mg/0.01% |
| Pan Size | 3.5 in (90 mm) |
| Heater Type | Halogen Lamp |
| Communication | USB device; USB host x 2; RS232 |
| Dimensions | 13.98 in x 7.09 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW) |
| Display | Full-Color 4.3 in Touchscreen WQVGA |
| Heating Profiles | Ramp; Standard; Step; Fast |
| In-Use Cover | Included |
| Moisture Range | 0 % ; 100 % |
| Net Weight | 11.53 lb (5.23 kg) |
| Operating Range (Temp.) | 10 °C ; 40 °C |
| Power | 230V |
| Sample Size | 0.5 g ; 120 g |
| Shut-Off Criteria | Timed; Manual; Custom – User Set Weight Loss/Time; Custom – User Set Moisture% Loss/Time; Automatic – Preset Weight Loss/Time |
| Temperature Range | 40 °C ; 230 °C |
| Test Library | 100 |
| Units of Measurement | %DC; Gram; %RG; %MC |
| Working Environment | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing) |
DOCUMENTS
- Data Sheet_MB120_(DE)
- Data Sheet_MB120_(EN)_EU
- Data Sheet_MB120_(ES)
- Data Sheet_MB120_(FR)
- Data Sheet_MB120_(IT)
- Data Sheet_MB120_(PL)
- Manual_MB120_(DE)
- Manual_MB120_(EN)
- Manual_MB120_(ES)
- Manual_MB120_(FR)
- Manual_MB120_(IT)
- Quick Start Guide_MB90/120_(EN FR DＥ IT ES)
- User Guide_MB90/120_(12-Languages)
Beschrijving
OVERVIEW
Moisture affects everything we use on a daily basis. Therefore, in many cases it is important to be able to accurately determine the moisture content of samples. Equipped to handle routine and sophisticated measurements, our flagship moisture analyzer MB120 makes the whole process faster, easier, and more efficient. The MB120 allows you to analyze more samples, access saved data, and spend less time prepping and more time putting your results to work.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3″ TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 14 operational languages
Extra informatie
| Gewicht | 8 kg |
|---|---|
| Afmetingen | 36 × 18 × 21 cm |
